Vessel Marine Airbags And Boat Launching Inflatable Airbag For Shipyard

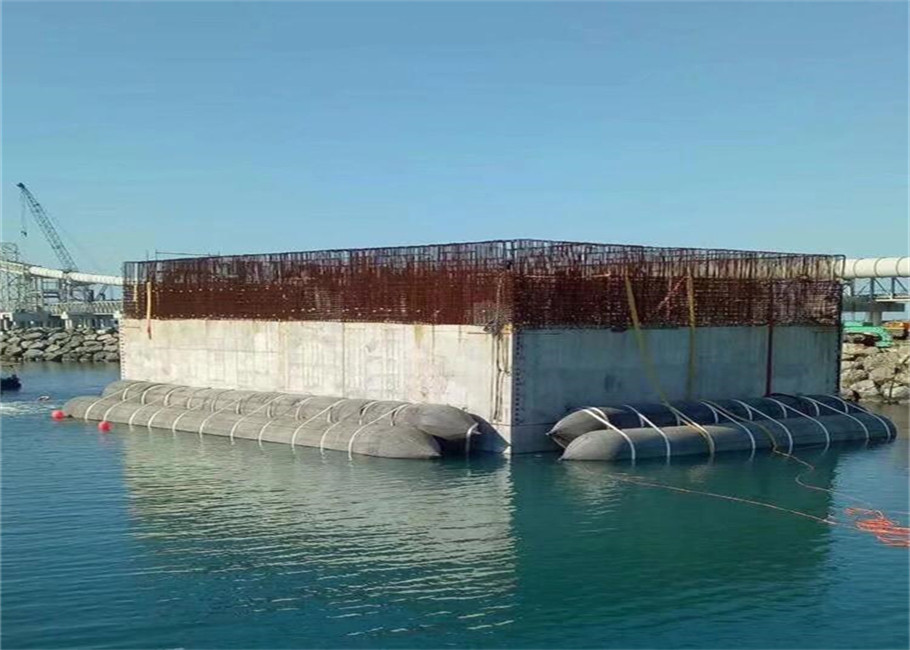

Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.
Some normal sizes of our Marine Rubber Airbag, customized sizes are also available
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Specifications
| Diameter | Working Pressure | Working height | Bearing capacity per unit length |
| KN/m | Ton/m |
| D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
| 0.5m | 157.16 | 16.02 |
| D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
| 0.6m | 160.3 | 16.34 |
| D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
| 0.8m | 143.03 | 14.58 |
| 0.7m | 163.43 | 16.66 |
| D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
| 1.0m | 138.22 | 14.09 |
| 0.9m | 155.59 | 15.86 |
| 0.8m | 172.85 | 17.62 |
| 0.7m | 190.22 | 19.39 |
| D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
| 1.1m | 141.46 | 14.42 |
| 1.0m | 157.16 | 16.02 |
| 0.9m | 172.85 | 17.62 |
| 0.8m | 188.64 | 19.23 |
From US customer feedback
The neat packaging method saves customers more on freight costs and protects the airbag from damage during transit
Why do customers like to choose us?
1. Value for Money, you will get the best price based on the excellent quality.
2. Unrivalled Expertise, we promise first-rate product quality and service.
3. Good product lifespan and quality warranty, our products has a long servicing life for 10-15years.
4. Professional after-sales service. We will help our customers to solve any product's questions within 24 hours.
5. For our customers, we will provide a set of repaire tools with free.
Thanks for reading, if you have any interest or questions, please feel free to contact me.
