BV Certificate 2x11M Inflatable Marine Airbags For Ship Launching And Salvage

Qingdao Henger Shipping Supply Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

BV Certificate 2x11M Inflatable Marine Airbags For Ship Launching And Salvage

Brand Name : Henger

Model Number : 016

Certification : CCS ABS LR BV TUV ISO,SGS,ABS,BV,CCS

Place of Origin : China

MOQ : 1pcs

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 50pcs week

Delivery Time : 5day

Packaging Details : paller

Product nam : Ship Airbag

Warranty : 24 Months

Layers : Customizable

Material : Natural Rubber

Specification : Customizable

Contact Now

BV Certificate 2x11M Inflatable Marine Airbags For Ship Launching And Salvage

1.Marine Rubber Airbags

Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.

BV Certificate 2x11M Inflatable Marine Airbags For Ship Launching And Salvage

BV Certificate 2x11M Inflatable Marine Airbags For Ship Launching And Salvage

2. Technical Requirement

According to CB/T 3795--1996, marine rubber fender should meet the following requirements.

  • Dimensional Deviation:

Diameter & Effective Length Deviation: ±2%

Total Length Deviation: ±4%

  • Amount of Elastic Deformation: diameter deformation amount ≤ 5% under 1.2 times working pressure.
  • Safety Factor: >4.5
  • Air Tightness: depressurization < 5% after 1hour inflation
  • Surface Quality: fairing line shape, no crack, no bubble, no double skin, no impurities, no distinct dirt and other apparent defect.
  • Anti-explosion design of end part.

3. Specifications

Diameter(m) 1.0 1.2 1.5 1.8 2.0
Medium Pressure
(4-5)
Test Pressure 0.14-0.16 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09
Working Pressure 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09 0.06-0.08
High Pressure
(6-8)
Test Pressure 0.22-0.26 0.20-0.24 0.15-0.20 0.13-0.16 0.12-0.15
Working Pressure 0.20-0.24 0.17-0.22 0.13-0.18 0.11-0.14 0.10-0.13

4. Some normal sizes of our Marine Rubber Airbag, customized sizes are also available

Diameter(m) Effective Length(m) Layer Pressure(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10 0.07~0.13

5. Marine Rubber Airbag Application

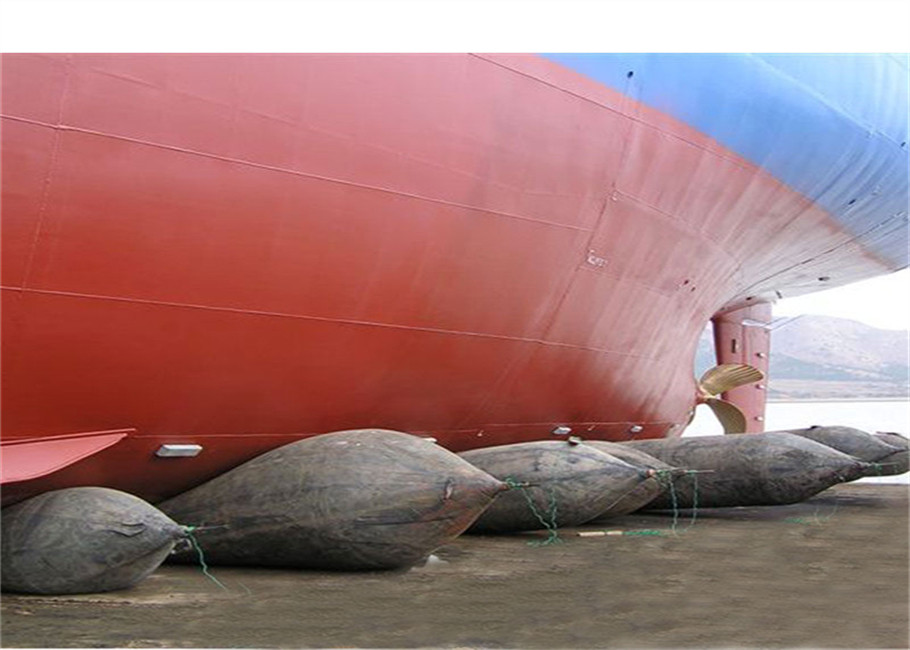

  • Ship Launching & Upgrading

With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.

  • Weight Lifting & Moving

Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects

  • Buoyancy Aid & Salvage

Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.

BV Certificate 2x11M Inflatable Marine Airbags For Ship Launching And SalvageBV Certificate 2x11M Inflatable Marine Airbags For Ship Launching And SalvageBV Certificate 2x11M Inflatable Marine Airbags For Ship Launching And Salvage

Thanks for reading, if you have any interest or questions, please feel free to contact me.

Tel/WhatsApp:+86 15053332502

E-mail:echo-bai@hengergroup.com
